Applications: aluminum plates, aluminum alloys, stainless steel and other base materials.
With over 16 years of experience, we provide customized, high-quality solutions to bring your coating projects to life—beautifully and reliably.
Super weather-resistant fluorocarbon powder PVDF
Super weather-resistant fluorocarbon powder PVDF

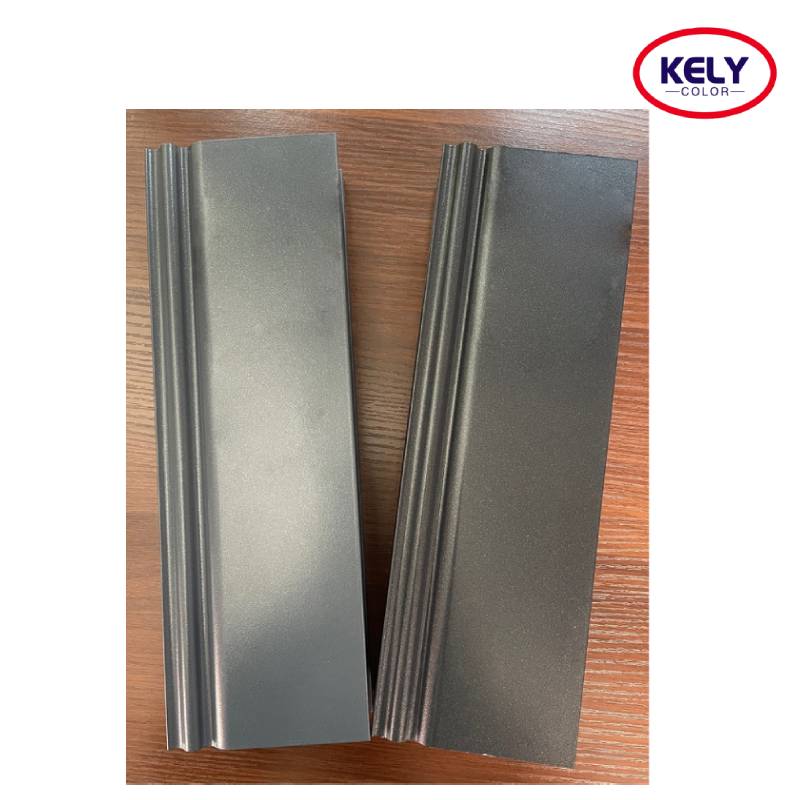

PVDF fluorocarbon paint is a high-temperature baking product, which generally includes primer and topcoat, and is baked for 15 minutes at 230°C. This fluorocarbon paint is mainly suitable for aluminum plates, aluminum alloys, stainless steel and other base materials. The paint film is metallic in color, has good metal texture, beautiful appearance and excellent decorative properties. It is widely used in the field of aluminum veneer curtain walls.
Main performance characteristics: Very good solvent resistance, chemical resistance, UV resistance, high mechanical strength, and excellent heat resistance
Product Specifications
| Type |
Thermosetting Powder Coating |
| Color | RAL colors, panton colors, color-matching |
| Curing Time | 10-20 minutes at 220℃-240(depending on system) |
| Gloss | 20-90GU |
| Optimal Film Thickness | 60-80um |
| Specific Gravity |
1.5-1.7g/cm³(depend on colors) |
| Coverage at 60 um | 9-12㎡/KG |
| Storage | Dry ventilation conditions below 30℃ |
| Average Particle Size | 35-50um |
|
Particle size distribution(Laser Particle size analyser) |
Less than 10% above 100 um 50 – 65% above 32 um |
Application Process:
1.Substrate Preparation
Aluminum: Chrome or chrome-free conversion coating (QUALICOAT/GSB approved)
Steel: Zinc phosphate or epoxy primer underlayer
2.Primer Layer (Recommended)
Fluorocarbon powder systems often use a 2-coat system:
Epoxy or polyester primer for adhesion & corrosion resistance
Fluorocarbon topcoat for UV/weather resistance
3.Topcoat Application
Apply via electrostatic spray gun
Use clean spray booth to prevent contamination
4.Curing
Curing depends on resin type:
PVDF: Often requires higher cure temps (220–240 °C)
FEVE-based: Can cure at 180–200 °C, similar to polyesters
Time: 10–20 minutes depending on system
5.Inspection & Testing
Coated parts tested for gloss, color, adhesion, salt spray resistance, etc.
Application
Architectural: Aluminum curtain walls, building facades, louvers, cladding panels
Infrastructure: Bridges, highways structures, towers (especially in marine zones)
Transportation: Railcars, buses, aircraft ground equipment
Energy Sector: Solar frames, oil rigs, offshore structures
High-End Outdoor Products: Lighting fixtures, exterior signage, custom outdoor furniture
Package
Inner packing: thick plastic bag;
Outer packing: export cardboard carton;
Carton Size: 35.5*38.5*29cm
Net Weight: 25Kg/carton Gross Weight:26Kg/carton
Product Testing
Producing Process
Application:
Shipping Way
By sea or by air
FAQ
1.M.O.Q :
The minimum order is 500kg ,each color ≥ 100kg
2.Colors:
RAL color :we usually use RAL colors that is widely used in paint industry and easily find in market
Custom color : Color matching is available , if you have colors model ,please send to us for matching .
3.Prices:
Prices depend on the colors and using environment ,for prices please tell us the colors and using environment (indoor use or outdoor use).
4.Time of delivery :
Production will take about 5-8 days after receipt of prepayment,this is subject to the quantity .
5.Payment :
30% T/T prepayment , 70% T/T before shipment (or against BL) or LC at sight .
6.Samples:
1kg powder sample is available for each color for your testing.
Sample is free of cost,but if you pay for the air freight we will highly appreciate.
